Description:
This column speaker is equipped with 2 to 4 cone angle speakers. In that case, compared with other similar products, this kind of column speaker owns a stronger directivity and higher frequency. And this structure is also good for improving the sound quality. Made of aluminum alloy, this column speaker is suitable for all-weather outdoor usage. With high-quality raw materials, this column speaker can generate identical amplification of human sound as well as music, with a clear tone and little noise.
Features:

With several speakers in the permutation and combination, this column speaker not only enjoys a similar directivity as the single speaker in the horizontal, but also owns a highly-improved directivity in the vertical. Its sound radiation is spread like a fan in the horizontal direction. And due to the 3-dimensional plate-shaped radiation effect, this column speaker has a stronger directivity. For example, if this kind of column speaker is installed around a stage entrance, with its sound plate directing at audience, the acoustic beams of this speaker are radiated to back rows in the auditorium, with strong sound energy. And the front rows can only receive a relatively weakened sound, with a lower sound pressure. That lower sound pressure is caused by the phase separation because of the varying vertical distances of the speaker. That’s to say, the sound directing route of this speaker is close to an even distribution.
Column Speaker
column speaker column speaker
Column Speaker

Column Speaker

Application:
This kind of column speaker is especially suitable for buildings with a high echo, such as churches, temples, large workshops, halls, auditoria, and airport lounges, etc.

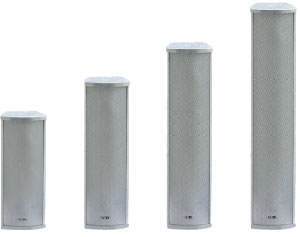

Parameters of Column Speaker MS2210-D/ MS2220-D/ MS2230-D/ MS2240-D
All of those column speakers have extruded aluminum bodies and Front metal-made protection grille. And all of them are equipped with line transformer for 70V/100V constant voltage system.

 Model  MS2210-D  MS2220-D  MS2230-D MS2240-D
 RMS Power  10W 20W  30W  40W
 Input Voltage  70-100V 70-100V 70-100V  70-100V
 Speaker unit  1×4"  2×4"  3×4" 4×4"
 Frequency range  200-15kHz  200-15kHz  200-15kHz  200-15kHz
 Sensitivity  88dB  89dB 89dB  90dB
 Dimension(mm)  130×110×260  130×110×330  130×110×420  130×110×500
 Material Aluminium alloy  Aluminium alloy  Aluminium alloy  Aluminium alloy

We are a professional manufacturer of the column speaker in China. Now, with rich production experience and lots of professional technicians, we can offer a wide range of products, such as driver unit, handheld megaphone, horn loudspeaker, siren speaker, and warning lights (halogen beacon, halogen lightbar, LED beacon, LED lightbar). With high quality and favorable price, we have won favor of many clients all over the world, such as Mexico, Thailand, Russia, Algeria, Philippines, Kazakhstan, Iran, Saudi Arabia, Nigeria, Singapore, Indonesia, Malaysia, the United Arab Emirates, South Africa, Australia, Brazil, and Sudan, etc. We also offer custom products at specific demands of our clients. If you need column speakers, please contact us.
